SS316 Metal Expansion Joint with Vibration Absorption Thermal Compensation and Leak-Proof Performance for Industrial Pipelines

Vibration Absorption Metal Expansion Joint

Thermal Compensation Axial Expansion Joint

Leak-Proof Performance Steel Bellows Expansion Joint

Место происхождения:

Китай

Фирменное наименование:

JINGNING

Сертификация:

CE、ZTC

Номер модели:

JDZ

Свяжитесь с нами

Запросите цитату

Детали продукта

Материал мембран:

SS304, SS316

Название продукта:

Стальные подшипники SS316 Металлический расширительный соединение 6.0Mpa Фланц соединен

Фланцевый материал:

Нержавеющая сталь, цинковая

Рабочее давление:

0---6.0Mpa

Ключевые слова:

Осевые расширительные суставы

Образец:

Доступный

OEM:

Поддерживать

Компания:

Фабрика

Условия оплаты & доставки

Количество мин заказа

Цена

$9.8~89.3/pc

Упаковывая детали

деревянный ящик

Время доставки

5-8 дней

Условия оплаты

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Поставка способности

10000 шт.

Родственные продукты

Thermal Expansion Joint Bellow Compensator with Multi-Layer Bellows for Industrial Pipeline in Carbon Steel with 17 Years Manufacturing Experience

Получите самую лучшую цену

Видео

Corrosion Resistant SS316 Exhaust Expansion Joint with Vibration Resistance and Thermal Expansion Compensation

Получите самую лучшую цену

Видео

SS316 Metal Expansion Joint with High Temperature Resistance and Flange Standard DIN/ANSI/JIS/BS for Industrial Applications

Получите самую лучшую цену

Видео

SS316 Metal Expansion Joint with Thermal Expansion Compensation and Axial Movement for Industrial Applications

Получите самую лучшую цену

Свяжитесь с нами

86-150-93112546

joints@chnflex.com

Свяжитесь сейчас

Описание продукта

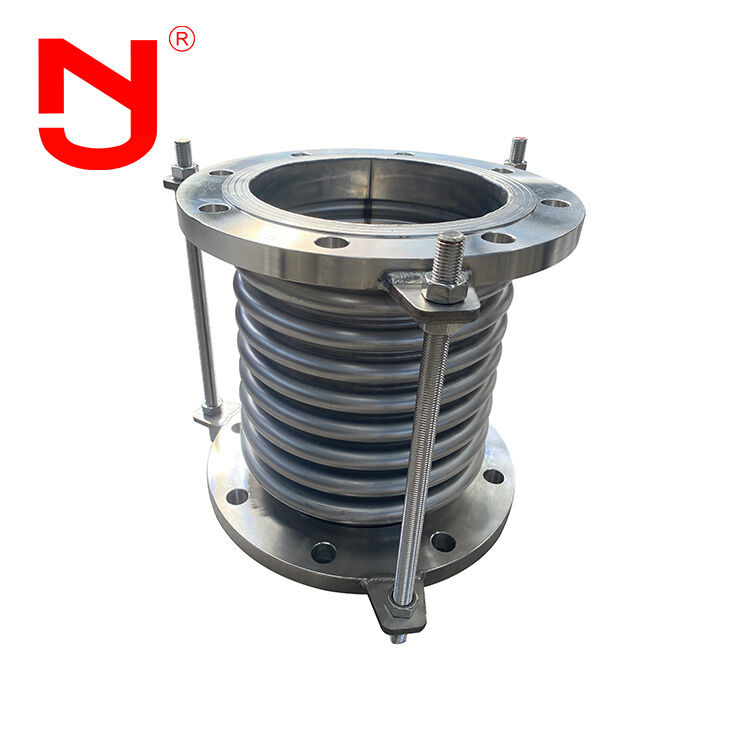

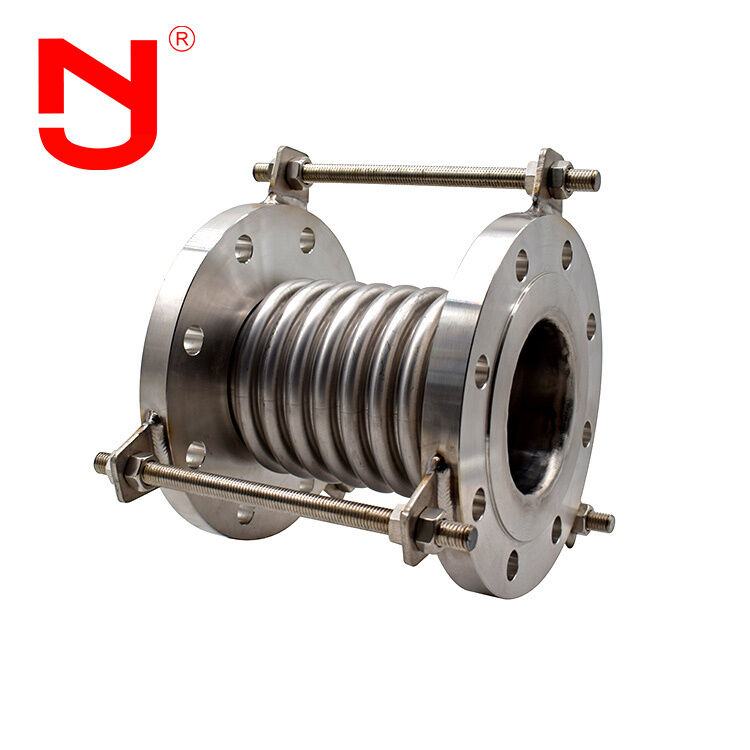

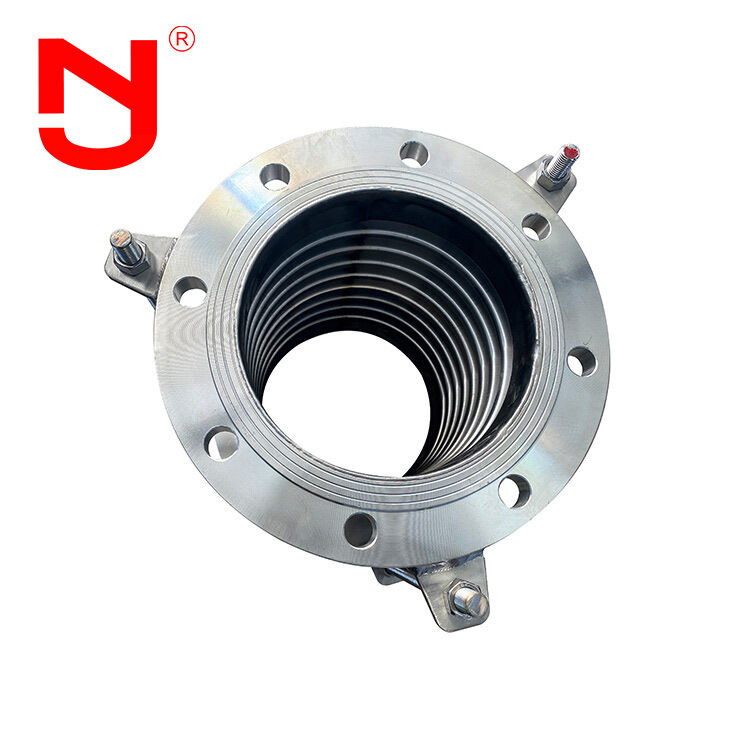

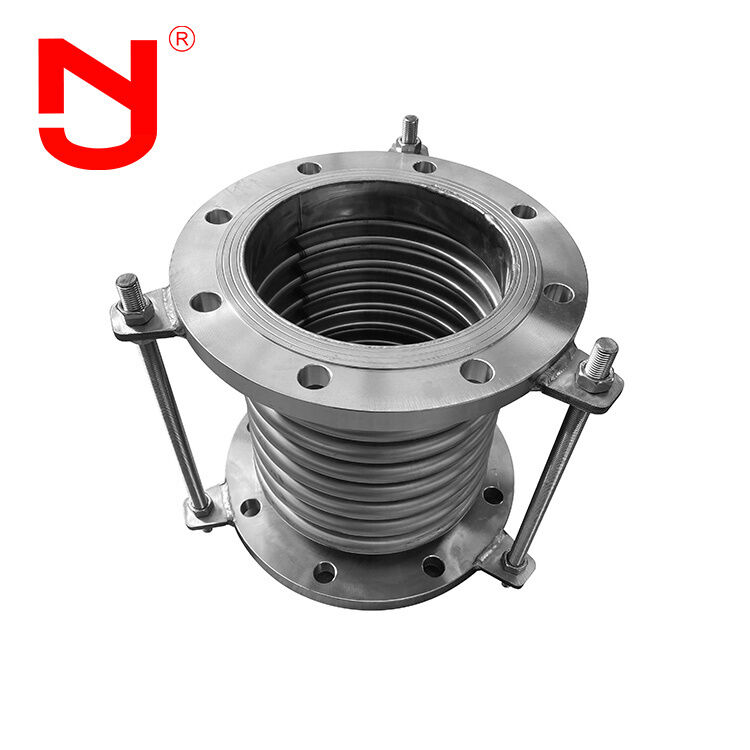

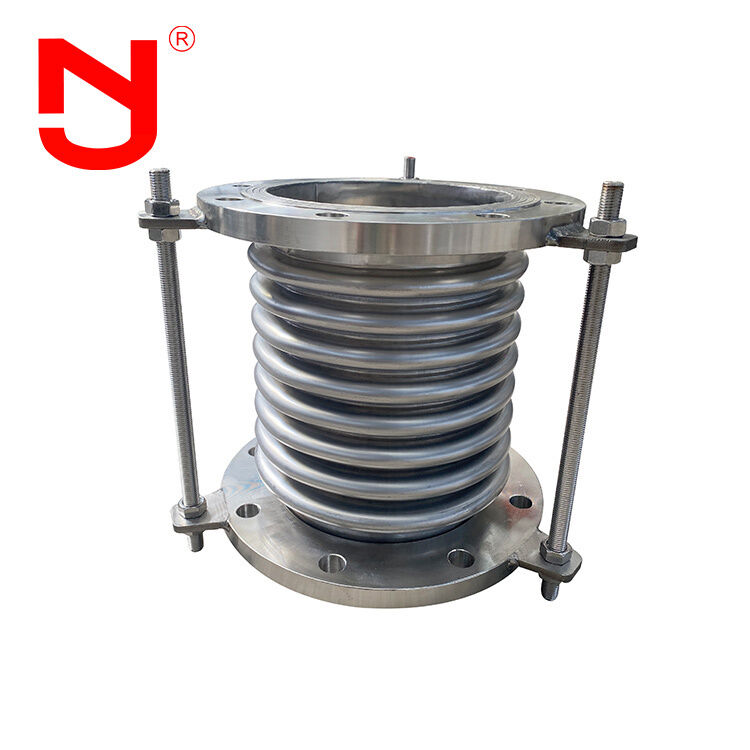

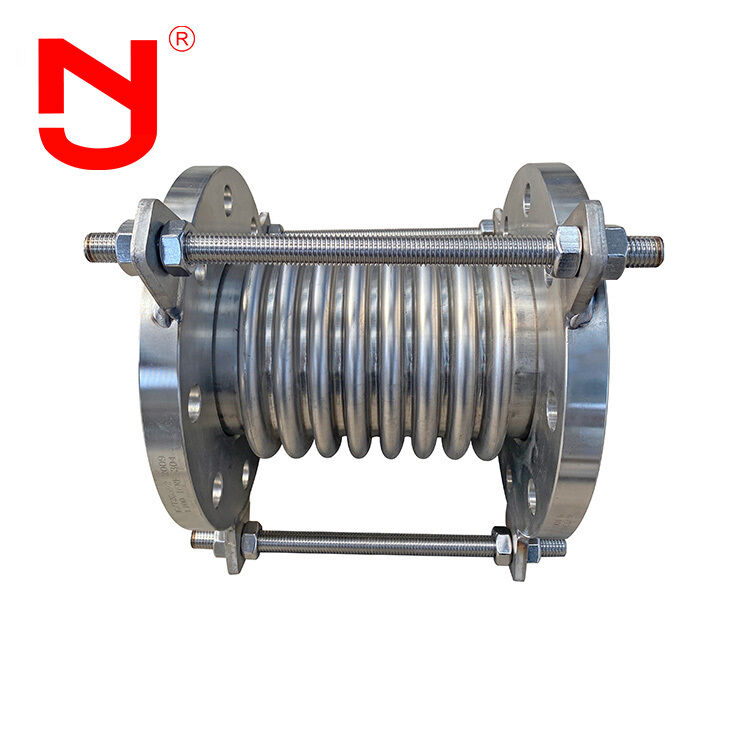

Axial Expansion Joints SS316 Metal Expansion Joint 6.0Mpa Flange Connected

This SS316 axial metal expansion joint is designed to absorb axial movements and thermal expansion in piping systems under high-pressure conditions up to 6.0 MPa. Manufactured with corrosion-resistant stainless steel 316 bellows and equipped with robust flange connections, it ensures excellent durability, leak-proof performance, and long service life. It is widely used in water treatment, petrochemical, HVAC, and industrial pipeline applications where reliable vibration absorption and thermal compensation are required.

Performance of Steel Bellows

Good compensation effect
High temperature resistance
Metal dust boot can reduce leakage
Vibration resistance and high-speed performance
The specific pressure of the spring can be reduced
Possible torque transmission
Through certain structural design, the sealing failure caused by scaling can be reduced

Technique Parameter of Steel Bellows

Main data of metal expansion joint

Diameter (mm)	Pressure grade (Mpa)	Available Area of Bellows (c㎡)	Max Size of External Diameter (mm)
32	1.0: 20/26 1.6: 18/63 2.5: 15/98 Flange: 16 Tube: 225	160/250	264/280
40	1.0: 20/24 1.6: 18/89 2.5: 15/98 Flange: 23 Tube: 244	164/259	269/289
50	1.0: 20/70 1.6: 18/70 2.5: 15/106 Flange: 37 Tube: 259	172/276	282/306
65	1.0: 26/44 1.6: 22/55 2.5: 15/138 Flange: 55 Tube: 270	215/294	300/322
80	1.0: 34/33 1.6: 28/41 2.5: 19/68 Flange: 81 Tube: 284	240/338	344/366
100	1.0: 40/75 1.6: 35/93 2.5: 25/54 Flange: 121 Tube: 304	235/317	323/345
125	1.0: 38/59 1.6: 34/74 2.5: 29/117 Flange: 180 Tube: 334	282/314	316/342
150	1.0: 40/62 1.6: 34/78 2.5: 29/92 Flange: 257 Tube: 364	282/339	338/367
200	1.0: 59/52 1.6: 53/58 2.5: 46/65 Flange: 479 Tube: 442	340/402	402/426
250	1.0: 87/35 1.6: 79/39 2.5: 48/78 Flange: 769 Tube: 507	393/459	493/399
300	1.0: 87/37 1.6: 79/41 2.5: 71/47 Flange: 1105 Tube: 562	464/525	564/565
350	1.0: 87/44 1.6: 79/48 2.5: 71/45 Flange: 1307 Tube: 622	509/564	609/604
400	1.0: 87/43 1.6: 79/47 2.5: 71/47 Flange: 1611 Tube: 562	522/566	622/628
450	1.0: 87/37 1.6: 79/41 2.5: 47/75 Flange: 1972 Tube: 700	403/498	503/523
500	1.0: 87/68 1.6: 79/75 2.5: 71/45 Flange: 2445 Tube: 760	431/523	531/554
600	1.0: 87/85 1.6: 79/94 2.5: 71/82 Flange: 3534 Tube: 835	478/548	578/588
700	1.0: 87/77 1.6: 79/85 2.5: 71/103 Flange: 4717 Tube: 1110	490	590
800	1.0: 102/102 1.6: 94/112 2.5: 71/95 Flange: 5822 Tube: 1265	502	602
900	1.0: 102/97 1.6: 94/107 2.5: 80/123 Flange: 7620 Tube: 1186	/	698
1000	1.0: 102/105 1.6: 94/106 2.5: 82/117 Flange: 9043 Tube: 1286	/	692

Steel Bellows Details

Production Process of Axial Expansion Joints

Do you know how a high quality Axial Expansion Joint is made? Let's see with JINGNING.

Steel Bellows Application

Because of compensator's flexibility, Axial Expansion Joints can compensate the temperature difference deformation or other deformation between equipment and pipeline, prevent vibration, reduce the thrust of pipeline on equipment, and adapt to the uneven settlement of oil tank foundation. Steel bellows can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrument, ship, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industry and civil field, the requirement of metal compensator is higher and higher.
